ClubSpot 160 CT™

ClubSpot 160 CT™

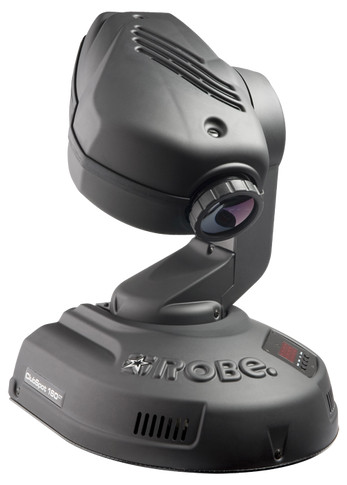

The ClubSpot 160 CT presents an ultra compact effect luminaire equipped with colour wheel with 6 dichroic filters, rotating gobo wheel with 7 replaceable gobos, shutter, variable strobo effect and manualfocus. This fixture is ideal for small clubs, bars, restaurants and discotheques applications.

technical

specification

  • Source

    • Lamp: Compact discharge lamp
    • Base: G12
    • Approved model: Philips CDM-SA/T 150/942
    • Ballast: Magnetic
  • Optical System

    • Objective: 19°
  • Electrical Specification

    • Wiring options: EU model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230/240 V, 50/60 Hz
    • Power consumption: 300 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 416 mm (16.4 ") - head in horizontal position
    • Width: 326 mm (12.8 ")
    • Depth: 362 mm (14.3 ")
    • Weight: EU model - 10.5 kg (23.1 lbs), US model - 12.5 kg (27.5 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating Gobos

    • Metal gobos - outside diameter: 26.9 mm, thickness: 0.5 mm, aluminium
    • Dichroic glass gobos - outside diameter: 26.8 mm, thickness: 1.1 mm, high temperature borofloat or better glass
    • Glass gobos - outside diameter: 26.8 mm, max. thickness: 4 mm, high temperature borofloat or better glass
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 6, 7 or 9
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • 4 DMX protocol modes
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
    • Built-in microphone for audio mode
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Rotating gobo wheel: 7 gobos (1 effect - glass gobo, 1 multicolor and 1 dichroic glass gobo, 4 metal gobos) + open
    • All gobos are replaceable
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Pan: 530°
    • Tilt: 280°
    • Maximum Pan-movement 530° in 3 s
    • Maximum Tilt-movement 280° in 1.9 s
  • Rigging

    • Via 2 Omega holders
ClubSpot 160 CT™

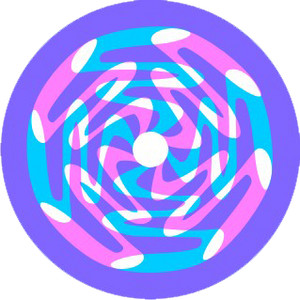

gobos & colours
