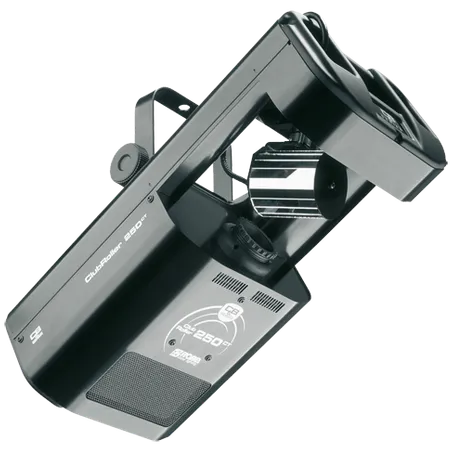

ClubRoller 250 CT™

ClubRoller 250 CT™

The ClubRoller 250 CT utilises the same housing and functions as the ClubScan 250 CT with the addition of a mirror barrel. As with the ClubScan, the unit comes with new electronics and software. This enables the master/slave and stand-alone operations. The option of ″auto-″ or ″music-trigger″ is also available for easy control. There‘s a gobo wheel with 9 new unique gobos; a colour wheel with 11 dichroic colours and UV effect filter and 3 multi-colour filters + open; a shutter with a strobe effect.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved models: Osram HSD 250/80, Philips MSD 250/2, Sylvania BA 250/2 SE
    • Ballast: Magnetic
  • Optical System

    • 19° objective, manual focus
  • Electrical Specification

    • Wiring options: EU model - 208/230/240V AC, 50/60Hz, US model - 100/120/208/230/240V AC, 50/60Hz
    • Power consumption: 300VA
  • Mechanical Specification

    • Height: 310 mm (12.2″) - bracket in horizontal position
    • Width: 238 mm (9.4″)
    • Depth: 493 mm (19.4″)
    • Weight: EU model - 13 kg (28.7 lbs), US model - 16 kg (35.3 lbs)
  • Thermal

    • Maximum ambient temperature: 45°C (113°F)
    • Maximum surface temperature: 80°C (176°F)
  • Rotating Gobos

    • Metal gobos - outside diameter: 16 mm, thickness: 0.5 mm, aluminium, image diameter: 13 mm
    • Dichroic gobos - outside diameter: 15.8 mm, thickness: 1.1 mm, high temperature borofloat or better glass
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 6
    • Built-in demo sequences
    • Display: 3-digit LED
    • Data in/out: Locking 3-pin XLR
    • Master/Slave and Stand-alone operation
    • 1-editable program up to 30 steps
    • Time trigger, audio trigger
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters and UV effect filter and 3 multi-colour filters + open
    • Gobo wheel: 9 rotating replaceable gobos (5 metal, 4 dichroic) + open; possible shaking gobos and pulse effects
    • Shutter: Full range dimming and variable strobe effect
  • Rigging

    • Via mounting bracket or mounting plate CT
  • Optional Accessories

    • Mounting plate CT
ClubRoller 250 CT™

gobos & colours

downloads

Here you can find all technical and marketing documents related to this product.
