X1 FT PRO™

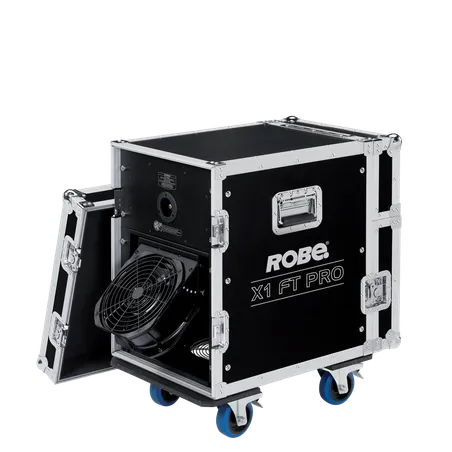

ROBE X1 FT PRO is a new, unified machine capable to quickly produce strong powerful fog or layer of even, thin haze, combining Fog and Faze operation into a single unit, make it ideal for universal operation even in large venues.

Equipped with latest technology air pump and with liquid solenoid valve based pump, it enables self-cleaning feature also ensures production of fine dry fog.

The built in adjustable angle fan with speed control allows easy regulation of the fog output power and direction. Road ready rugged case design provides perfect touring and transport option.

technical

specification

  • Description

    • Power: AC 230 V/AC 240 V, 50Hz or AC 100 V/AC 120 V, 60 Hz optionally
    • Heater: 1.500 W
    • Power Consumption: 1.650 W
    • Output: 3.500 cu.ft/min.
    • Control Options: On-Board Control Panel, DMX, Wireless-DMX
    • Fluid Consumption Rate: 140 ml/min. (Fog Mode), 28 ml/min. (Faze Mode)
    • First Heat-up Time: 6 min.
    • Tank Capacity: 5 liters
    • Low Fluid Indicator: Blue LED
    • Remote Included: Timer Control Module
    • Weight: 52.5 kg
    • Dimensions (mm): L 710 x W 412 x H 710
    • DMX Channel Occupied: 3 Channels
    • Channel 1: Fog / Haze Mode
    • Channel 2: Output Volume
    • Channel 3: Fan Volume
    • Wireless DMX Reciver (optional): CRMX TM from Lumen Radio
    • Liquid Used: Standard Fog/Performance Fog/Premium Fog
