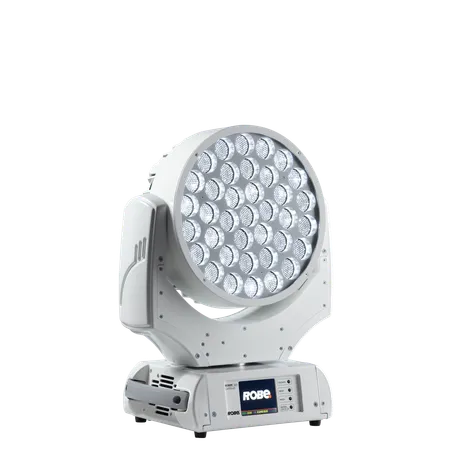

PureWhite 600 DL™

single Spotlessly even light output of the highly popular ROBIN® 600 LEDWash in a PureWhite version, offering smooth output of white only variations.

DayLight, WarmWhite or SmartWhite combinations of LEDs are arranged in 3 concentric rings for providing comprehensive and perfectly even wash coverage, ideal for car shows, theaters and thank to flicker free LED operation also for TV studios. Fast 15 – 60 degree motorized zoom, speedy pan and tilt movement and powerful fast strobing with pre-programmed strobe effects of all LEDs or per each individual ring can turn this wash unit into very effective blinding tool. Available only in a white colour, wired DMX version. (Black housing on request)

  • Light source

    37 x white LEDs, 6.5000K

  • Light output

    6.700 lux @ 5 m

  • Zoom range

    15° - 60°

  • Effects

    3 LED rings control

technical

specification

  • Source

    • Light source: 37 LED multichips
    • Led Life Expectancy: minimum 60.000 hours
    • Typical Lumen Maintenance: 70% @ 60.000 hours
  • Optical System and effects

    •  High efficient component optics
    • Linear motorized zoom 15° – 60°
    • White colour tempareture : 6.500 K
    • High resolution dimmer 0–100%
    • Strobe effect with variable speed (max. 20 flashes per second)
    • Pre-programmed random strobe pulse-effects
  • Control and programming

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Optional wireless version available : CRMX™ technology from Lumen Radio
    • Control channels: 18, 12, 13, 10, 18
    • 5 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyser for easy fault finding
  • Thermal

    • Maximum ambient temperature: 40 °C (104 °F)
    • Maximum housing temperature: 80 °C (176 °F)
  • Movement

    • Pan movement range 450°
    • Tilt movement range 300°
    • 16 bit movement resolution
    • Automatic pan/tilt position correction
    • Built-in Pan/Tilt macros
  • Electrical Specification

    • Electronic auto-ranging
    • Input voltage: 100–240 V AC, 50-60 Hz
    • Max. power consumption: 415 W

  • Mechanical Specification

    • Height: 444 mm (17.5")
    • Width: 345 mm (13.6")
    • Depth: 203 mm (8.0")
    • Weight: 10.6 kg (23.4 lbs)
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2x Omega bracket with ¼-turn quick locks
    • Optional: Single omega bracket for one clamp
